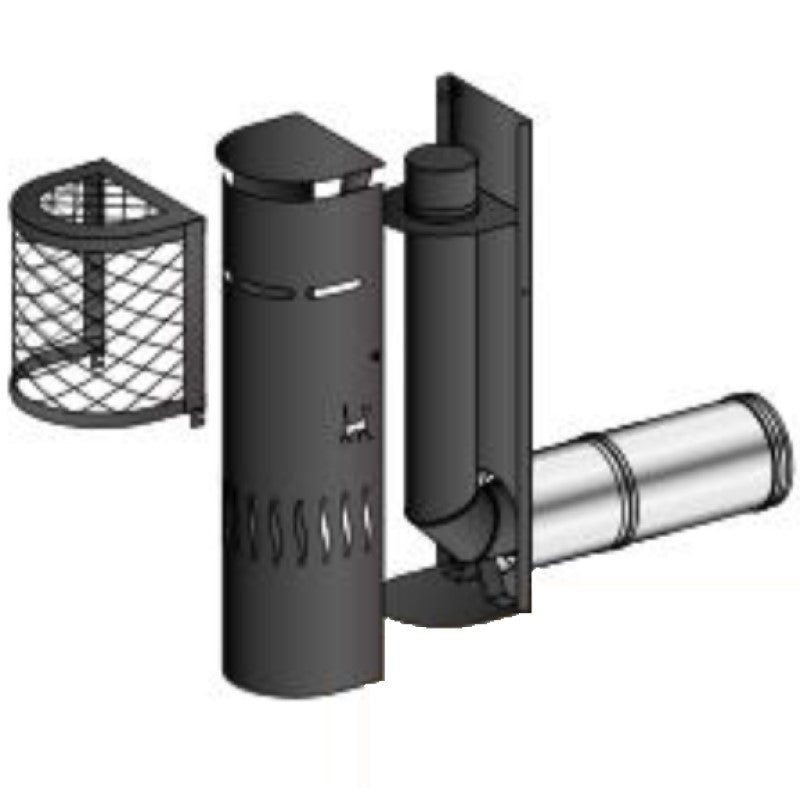

ACR Balanced Flue Snorkel Kit
ACR Balanced Flue Snorkel Kit
Couldn't load pickup availability
Concentric flue system for room-sealed gas fires.
Installation with termination through the wall using a snorkel terminal
The DUO-GAS system is a 316L stainless steel concentric flue designed for gas fired room-sealed appliances.
It brings the combustion air in and also evacuates the smoke. It can also be used as a conventional gas vent
Duo-Gas is mainly suitable for new built market and can terminate vertically through the roof or horizontally through the wall. With our specially designed Renovation Kit you can easily connect this concentric chimney system to an existing chimney lined with our Tubinox Gas Flex liner.
Specifications:
Product Specifications
-
CE Marking: 0071-CPR-23485
-
Colour: Black
-
External Diameter: 150 mm
-
Internal Diameter: 100 mm
-
Internal Wall Thickness: 0.4 mm
-
Material: 316 stainless steel
-
Maximum Temperature Limit: 600°C
-
Used In Kit: Kit 2
-
Warranty: 12 months
Share
- Description
- Specifications:
- Delivery & Returns
Concentric flue system for room-sealed gas fires.
Installation with termination through the wall using a snorkel terminal
The DUO-GAS system is a 316L stainless steel concentric flue designed for gas fired room-sealed appliances.
It brings the combustion air in and also evacuates the smoke. It can also be used as a conventional gas vent
Duo-Gas is mainly suitable for new built market and can terminate vertically through the roof or horizontally through the wall. With our specially designed Renovation Kit you can easily connect this concentric chimney system to an existing chimney lined with our Tubinox Gas Flex liner.
Product Specifications
-
CE Marking: 0071-CPR-23485
-
Colour: Black
-
External Diameter: 150 mm
-
Internal Diameter: 100 mm
-
Internal Wall Thickness: 0.4 mm
-
Material: 316 stainless steel
-
Maximum Temperature Limit: 600°C
-
Used In Kit: Kit 2
-
Warranty: 12 months
