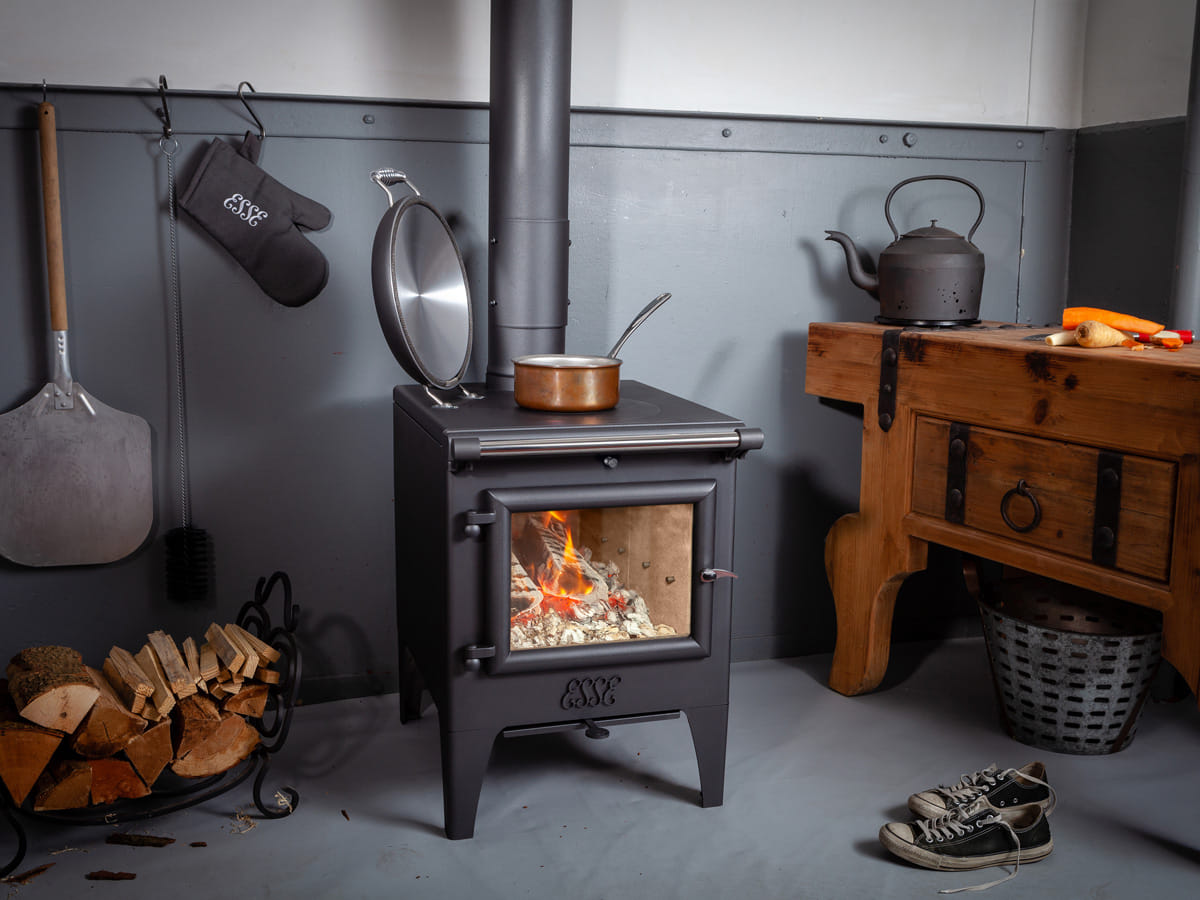

Esse Warmheart Wood Fired Cook Stove

The compact Warmheart wood-fired cooking stove is the perfect heating solution for a bijou country cottage or remote backcountry bothy.

While its rugged cast-iron design and simple styling may give the impression that the Warmheart has been around for decades, this state-of-the-art piece of quality British engineering encapsulates everything we’ve learned in more than 160 years of manufacturing stoves and range cookers.

Using the same principles as our best-selling Ironheart, the wood-fired Warmheart provides ample heat to keep things warm and toasty while a casserole bubbles away on the hob or a couple of steaks sizzle in the firebox.

No gas or electricity? No problem. The Warmheart comes into its own in an off-grid environment, making it the perfect choice for heating a bolt hole in the outback or a cabin in the woods.

While our standard range cookers are designed to contain heat, the Warmheart also incorporates convection panels that radiate warmth out into the room – just like a wood-burning stove.

ESSE’s unique heat transfer stove technology efficiently channels heat from the firebox into the graduated temperature hob, extracting energy from the combustion process for your wood-fired cooking adventures.

The graduated temperature hob offers additional heat control, with the heat reducing from 300˚C in the centre down to 190˚C at the outside.

Designed to accommodate dry, seasoned logs of up to 400mm (15in) length the Warmheart can be installed pretty much anywhere to provide a reliable, ‘off-grid’ source of heat for extended periods.

Manual

Specifications:

Features

• Graduated temperature hotplate ranging from 190°C – 300°C
• Off-grid heating and cooking – no mains services required
• Simple air control
• Powerful 5kW heat output
• Suitable for use in smoke control areas
• Efficiency rating of 77.3%, Energy Rated ‘A’
• Ecodesign Ready


Specifications

• Energy Rating: A

• Ecodesign Ready: Yes

• Net Efficiency: 77.3%

• Seasonal Efficiency: 67.3%

• Heat Output: 5 kW

• Graduated Hotplate Temperature Range: 190°C – 300°C

• Single Air Control: Yes

• Direct Air Kit Compatible: Yes

• Approved for Use on Decorative Hearths: Yes

• Requires Additional Room Vent: No

Capacity & Compatibility

• Firebox Capacity: Accommodates logs up to 400 mm

Weight & Dimensions

• Weight: 154 kg

• Flue Pipe Diameter: 150 mm (6")

Clearance to Combustibles

• Sides: 350 mm

• Rear: 400 mm

• Bolster Lid Clearance: 416 mm

Emissions (at 13% O₂)

• Particulate Matter (PM): 23 mg/m³

• Organic Gaseous Compounds (OGC): 54 mg/m³

• Carbon Monoxide (CO): 0.08%

• Nitrous Oxides (NOₓ): 82 mg/m³
