ACR Solis 5 Kw with Steel Top
ACR Solis 5 Kw with Steel Top
Couldn't load pickup availability
Since 2005, Ginlong Solis have been at the forefront of developments in the solar inverter industry. The company are internationally renowned for their reliable, innovative and cost-effective energy management solutions: tailoring their inverters to the demands of regional markets. Ginlong Solis provide residential, commercial and utility-scale sectors with sustainable solar products, while promoting a scientific, green and humanistic culture.

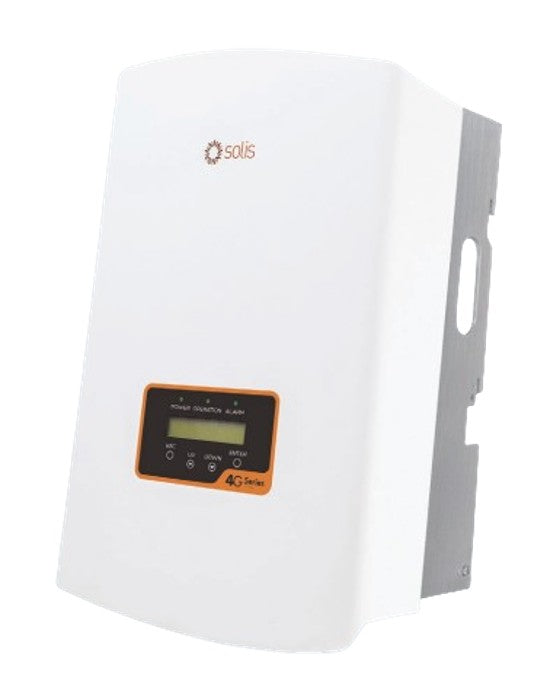

The Solis S5-EH1P5K-L is a 5kW hybrid inverter, which is ideal for residential energy storage systems. Compatible with both lithium and lead-acid batteries, this highly efficient inverter offers uninterrupted power supply (20ms reaction) and a back-up supply to support more critical loads.
The hybrid inverter incorporates AFCI protection to reduce the fire risk, while the intelligent EMS function helps to improve the battery’s reliability. Hybrid inverters in this range can operate in both off-grid and on-grid modes and facilitate smart energy management round the clock.
Specifications:
Product Features
- Highly reliable – uninterrupted power supply (20ms reaction)
- Multiple working modes available to maximise self-consumption
- Higher charge-discharge efficiency, improving the economic benefits
- Fanless design, long lifespan
- Intelligent EMS function, improving battery’s reliability
- AFCI protection, proactively reduces fire risk
- High frequency isolation technology – improved safety and lifespan
Technical Specification
- Rated output power: 5kW
- Operation phase: 1/N/PE
- Recommended max. PV power: 8kW (Input DC)
- Max. input voltage: 600V
- Start-up voltage: 120V
- MPPT voltage range: 90 - 520V
- MPPT number/Max. input strings number: 2/2
- Max. efficiency: >97.1%
- Output AC back-up power: 5kW
- Dimensions: 333 x 505 x 249mm (W x H x D)
- Weight: 18.3kg
Share
- Description
- Specifications:
- Delivery & Returns
Since 2005, Ginlong Solis have been at the forefront of developments in the solar inverter industry. The company are internationally renowned for their reliable, innovative and cost-effective energy management solutions: tailoring their inverters to the demands of regional markets. Ginlong Solis provide residential, commercial and utility-scale sectors with sustainable solar products, while promoting a scientific, green and humanistic culture.
The Solis S5-EH1P5K-L is a 5kW hybrid inverter, which is ideal for residential energy storage systems. Compatible with both lithium and lead-acid batteries, this highly efficient inverter offers uninterrupted power supply (20ms reaction) and a back-up supply to support more critical loads.
The hybrid inverter incorporates AFCI protection to reduce the fire risk, while the intelligent EMS function helps to improve the battery’s reliability. Hybrid inverters in this range can operate in both off-grid and on-grid modes and facilitate smart energy management round the clock.
Product Features
- Highly reliable – uninterrupted power supply (20ms reaction)
- Multiple working modes available to maximise self-consumption
- Higher charge-discharge efficiency, improving the economic benefits
- Fanless design, long lifespan
- Intelligent EMS function, improving battery’s reliability
- AFCI protection, proactively reduces fire risk
- High frequency isolation technology – improved safety and lifespan
Technical Specification
- Rated output power: 5kW
- Operation phase: 1/N/PE
- Recommended max. PV power: 8kW (Input DC)
- Max. input voltage: 600V
- Start-up voltage: 120V
- MPPT voltage range: 90 - 520V
- MPPT number/Max. input strings number: 2/2
- Max. efficiency: >97.1%
- Output AC back-up power: 5kW
- Dimensions: 333 x 505 x 249mm (W x H x D)
- Weight: 18.3kg
