ACR Trinity 1 5 Kw with Single Glass Panel
ACR Trinity 1 5 Kw with Single Glass Panel
Couldn't load pickup availability

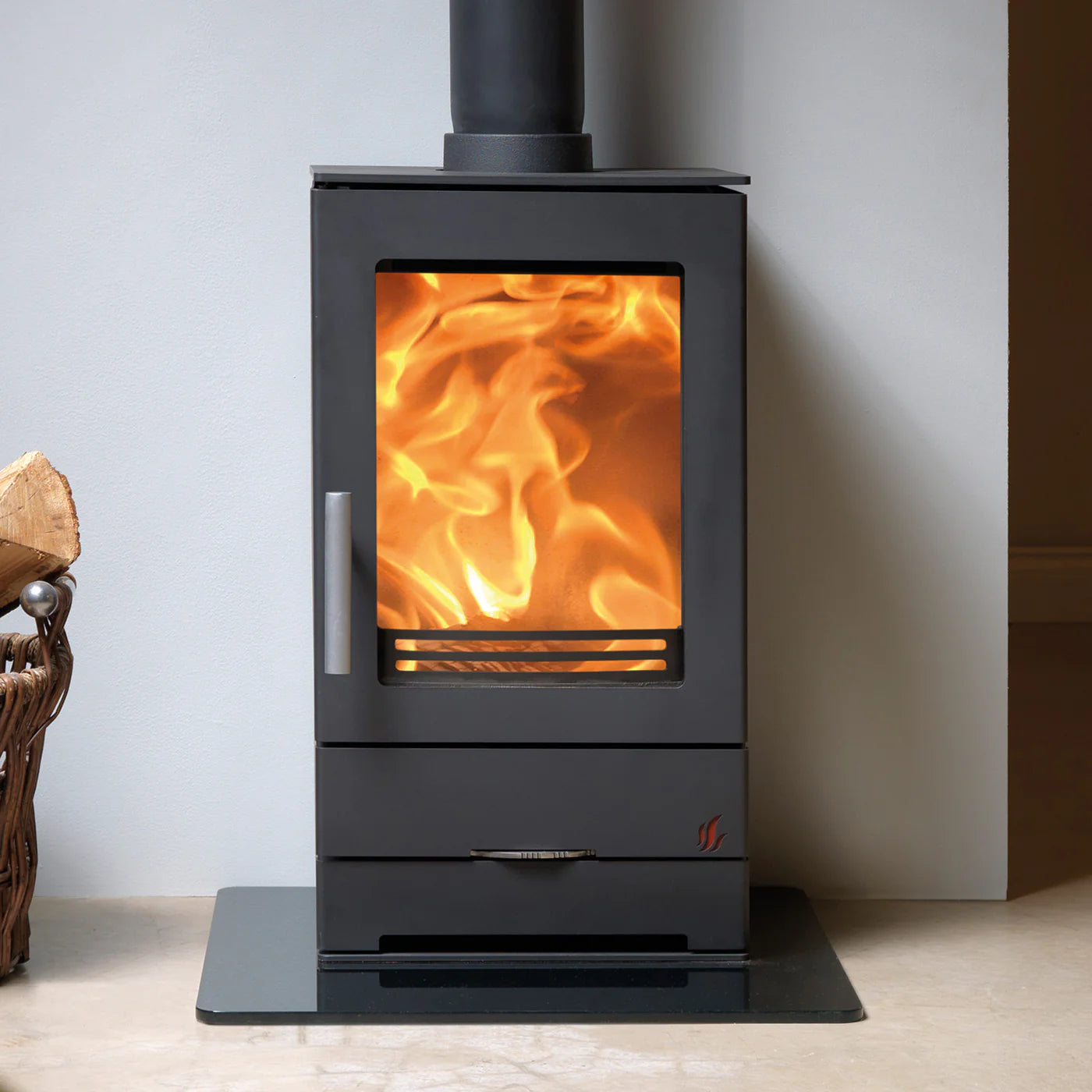

The large glass panel is swept clean by a powerful airwash to give excellent views of the flames. Being DEFRA exempt means you can burn wood even in smoke controlled areas. It has a 5Kw output and is finished in matt black paint and is EcoDesign approved making it one of the cleanest stoves available.
The Trinity Eco is easy to operate and has a convenient ash removal system with an anti-spill lid to prevent any ashes blowing in the wind when emptying the ashpan.
Specifications:
Product Specifications
-
Height: 766 mm
-
Width: 397 mm
-
Depth: 363 mm
-
Heat Output Range: 5 kW nominal (2.5 kW min / 7.0 kW max)
-
Efficiency: 72.3% (gross), 79.4% (net)
-
Hearth Requirement: 12 mm superficial non-combustible hearth required (see Building Regulations) – surface temperature below 100°C
-
Weight: 90 kg
-
Flue Diameter: 125 mm
-
Smoke Exempt Appliance: Yes
-
Maximum Log Length: 40 cm
-
Energy Efficiency Index (EEI) – 2018 Ecolabelling Classification: A
Share
- Description
- Specifications:
- Delivery & Returns
The large glass panel is swept clean by a powerful airwash to give excellent views of the flames. Being DEFRA exempt means you can burn wood even in smoke controlled areas. It has a 5Kw output and is finished in matt black paint and is EcoDesign approved making it one of the cleanest stoves available.
The Trinity Eco is easy to operate and has a convenient ash removal system with an anti-spill lid to prevent any ashes blowing in the wind when emptying the ashpan.
Product Specifications
-
Height: 766 mm
-
Width: 397 mm
-
Depth: 363 mm
-
Heat Output Range: 5 kW nominal (2.5 kW min / 7.0 kW max)
-
Efficiency: 72.3% (gross), 79.4% (net)
-
Hearth Requirement: 12 mm superficial non-combustible hearth required (see Building Regulations) – surface temperature below 100°C
-
Weight: 90 kg
-
Flue Diameter: 125 mm
-
Smoke Exempt Appliance: Yes
-
Maximum Log Length: 40 cm
-
Energy Efficiency Index (EEI) – 2018 Ecolabelling Classification: A
